Tube and Bottle Filler XY TF-3000

Flexible automated lab test tube and bottle filler

Used by FDA grants for Coronavirus - COVID-19 Diagnostic Tests and Research

Manufacturer: BioTool Swiss AG
SKU: 970000

Tubes and bottles filling has never been this fast and easy

The TF3000 automated tube filler is being used by mulitple organizations funded by FDA grants for Coronavirus - COVID-19 Diagnostic Tests and Research ! <<See Covid 19 demo Video here>>



xy covid 19 video

COVID 19 UPDATE

Our XY tube filler solution has helped over 30 Covid 19 Laboratoreis Acorss USA and Canada with filling of numerous test tubes pre and post swab tests, for example - Broad Institute converted part of their CLIA-certified lab into a high-throughput COVID-19 testing facility to serve the public health needs of the Commonwealth of Massachusetts and surrounding areas. Broad's team has steadily increased the pace and scale of diagnostic testing. The testing facility processes samples obtained from nasal swabs, using an RT-PCR assay, and has an average turnaround time of less than 24 hours from the time tests arrive at their facility helping process 100,000 Covid19 samples per day. See video here - check min 8.10 to 8.45 as part of the lab workflow.

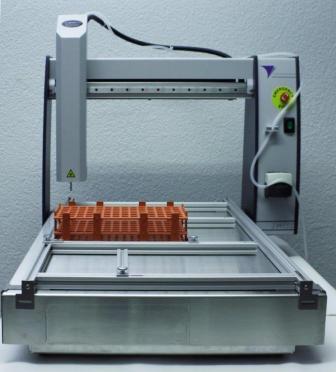

The new TF-3000 from Biotool Swiss automated tube and bottle filler automates the repetitive labor intensive process of filling of tubes & bottles. Set up is easy, just place the rack* (you can practically use most commercial rack in the market - * as long as it fits on the filling platform and the tubes are held tightly in place and kept in an upright straight position), train the intelligent yet simple to use software about the position of your racks, size of tubes and requested filling volume and let the TF-3000 do the rest.



tube filler



The TF-3000 comes as a system with an integrated built-in peristaltic pump that is controlled by the software.

The LED guided arm, will start moving in precision from tube to tube filling up the desired volume freeing the lab technician from this tedious time consuming task.

  • Free positioning of most racks*
  • Intuitive software
  • True walk away tube/bottle filling
  • Large 15.5 x 21 inch usable surface
  • Use of tubes/bottles up to 25cm high with a capacity of up to 1.6 liter/min
  • Optional costum laser cut platforms for quick exchange between jobs

View promotional video here>>

Features and Benefits

Large flexible surface accommodates most racks* of tubes or bottles
Quick easy set up with an integrated peristaltic pump
Flexible easy to use software allows simple programming of tubes or bottles positions

Technical data

Exterior Dimmensions (cm / inches) 56 x 80 x 14 cm Base H / 63 cm  Arm Height,   22 x 32.5 x 5.5 inches Base H / 25 inch Arm Height
Usable space  39.5 x 53 cm , 15.5 x 21 inch
Max tube/bottle height 25 cm / 9.85 Inch
Net Wieght with no rack 29.7 Kg / 66 lb
Shipping Dim 91.5 x 76 x 76 cm , 36 x 30 x 30 inch in a wooden crate
Shipping Weight 55 kg - 100 lb
Voltage 110 / 230V, 50/60Hz
Delivered with
Pump Built in. 2 options, Regular and Fast plus an optional double heade pump for bottle filling
Software Windows-compatible Software on CD-Rom (WIN7 or higher), laptop required - NOT included
TubIng set One standard Tubing set -  3*7mm, Stainless steel needle 4mm included with the unit

 TF3000 Filling rates based on unit and tube set used:

Ordering Info

Ordering Info
 CAT. No. 970000 TubeFiller complete with software and integrated Pump - One tubing set included
CAT. No. 9700010 TubeFiller complete and software and Fast integrated pump for large volume filling - One tubing set included

View video

View video

Reviews

  • The XY Tube Filler has high volume results with repeatable and reliable dispersion. We have been using it for COVID19 test fillings and it is just a beautiful instrument to watch work.
